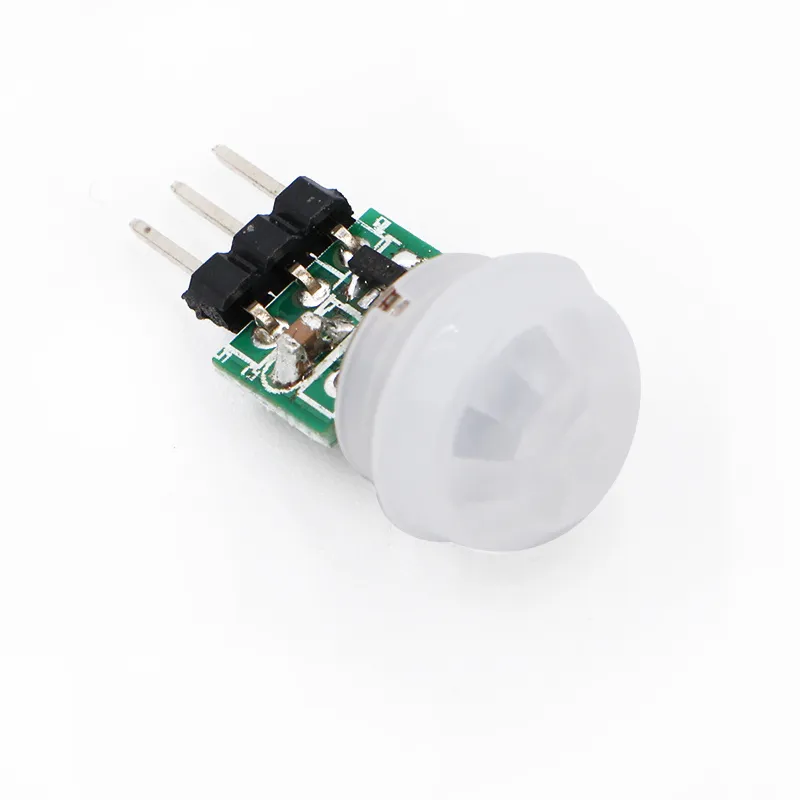

El hermanito pequeño del sensor PIR normal; la cabeza tiene un diámetro de solo 1,1cm
Pines:
- Vin (indicado con "+" y/o "U1")
- Out (pin central)
- GND/ground/min (indicado con "-" y/o "C1")
Dimensiones
Longitud: 2,8cm
Anchura: 1,4cm
Altura: 1,4cm

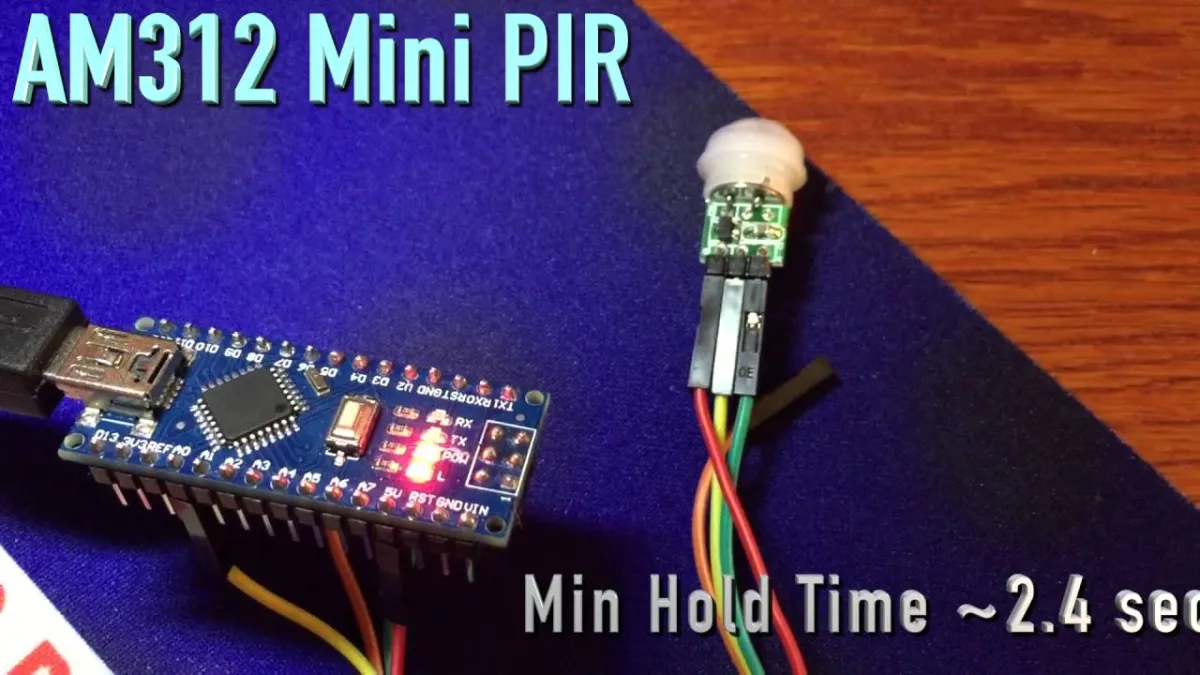

Al reproducirlo, se carga el vídeo de YouTube.
Así conectas el Mini sensor de movimiento infrarrojo piroeléctrico PIR a un Arduino UNO o ESP32, con un sketch de ejemplo que puedes subir directamente.

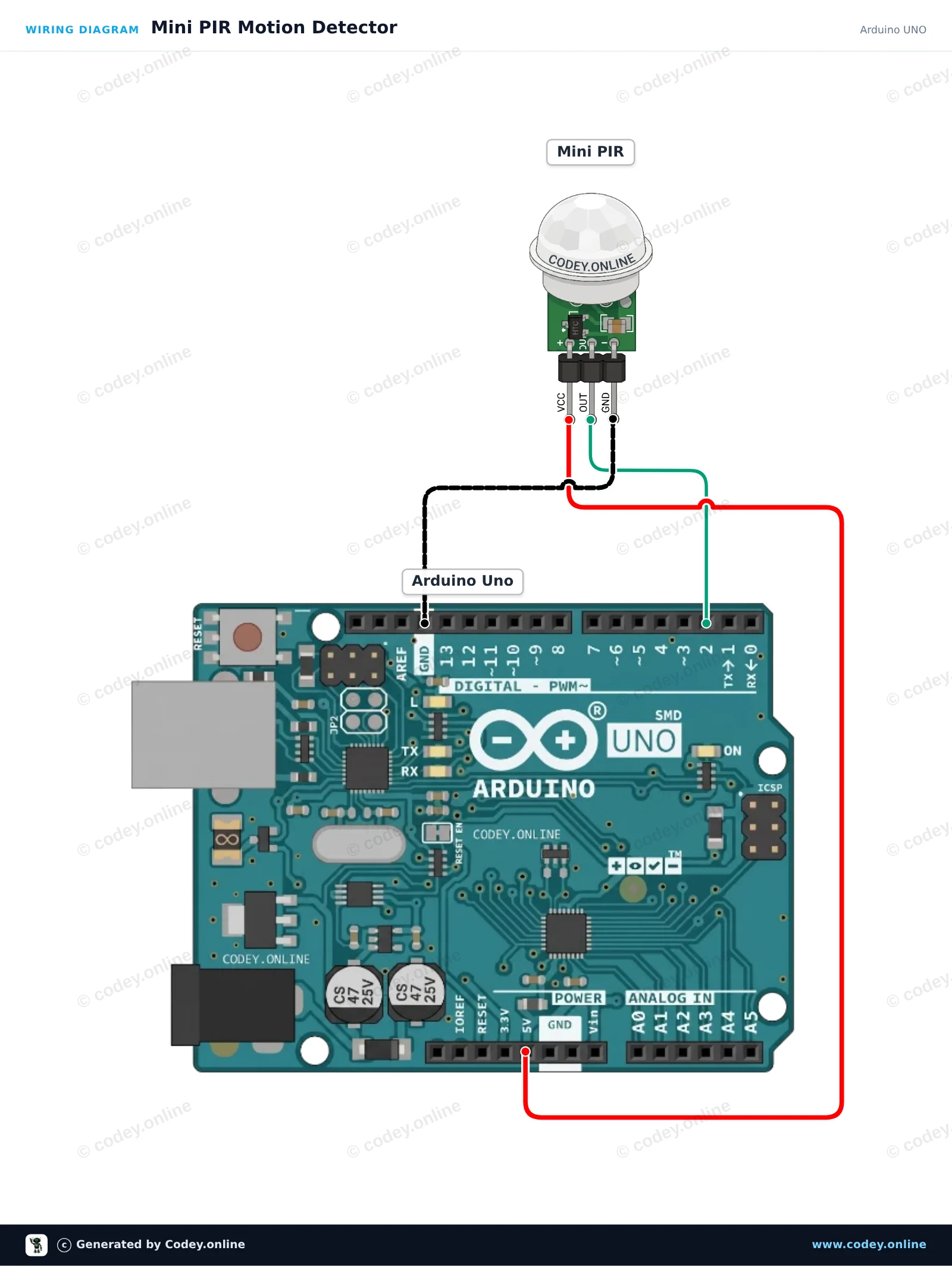

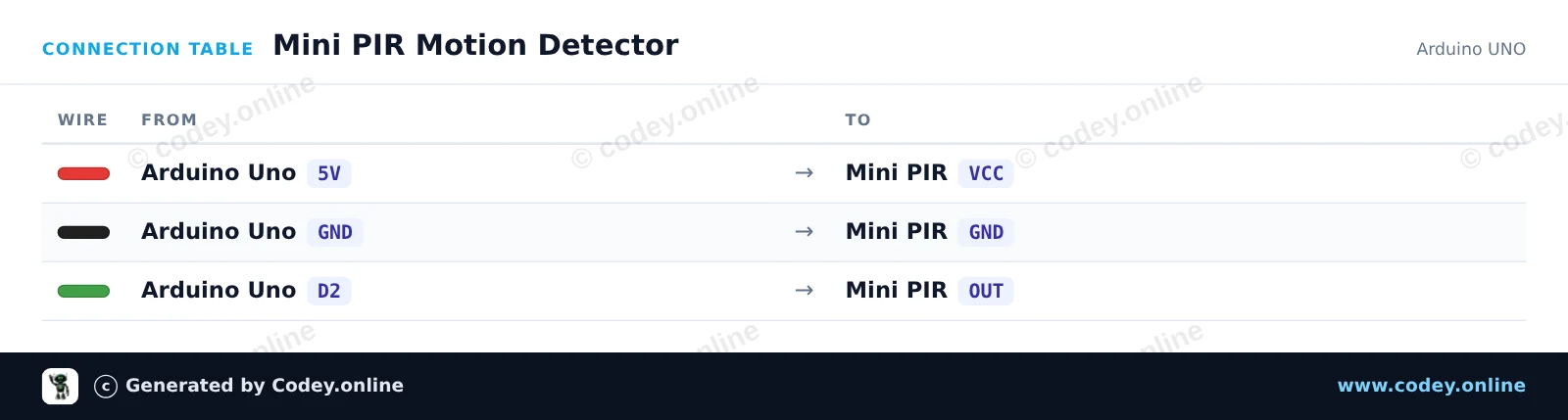

Este proyecto detecta movimiento usando un sensor PIR mini y activa el LED integrado del Arduino. Cuando se detecta movimiento, el LED se enciende y se muestra una notificación en el Serial Monitor. Deja un breve tiempo de calentamiento después de encenderlo para que el sensor se estabilice.
English
Nederlands
Frans
Deutsch
Italiano
Suomi
Polski
Dansk
Ελληνικά
Български
Čeština
Hrvatski
Svenska
Aileen/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : Mini PIR Motion Detector
* Board : Arduino UNO (arduino:avr:uno)
* Parts : Mini PIR
* Libraries : none (built-in)
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
// Pin definitions
const int pirPin = 2;
const int ledPin = 13;
void setup() {
pinMode(pirPin, INPUT);
pinMode(ledPin, OUTPUT);
Serial.begin(115200);
Serial.println(F("Mini PIR Sensor Initializing..."));
Serial.println(F("Waiting 5 seconds for sensor to settle..."));
delay(5000);
Serial.println(F("Ready! Monitoring for motion..."));
}
void loop() {
int motionDetected = digitalRead(pirPin);
if (motionDetected == HIGH) {
digitalWrite(ledPin, HIGH);
Serial.println(F("Motion detected!"));
} else {
digitalWrite(ledPin, LOW);
Serial.println(F("Scanning... No motion."));
}
delay(300);
}Wiring diagram and example code generated by Codey.online — https://www.codey.online

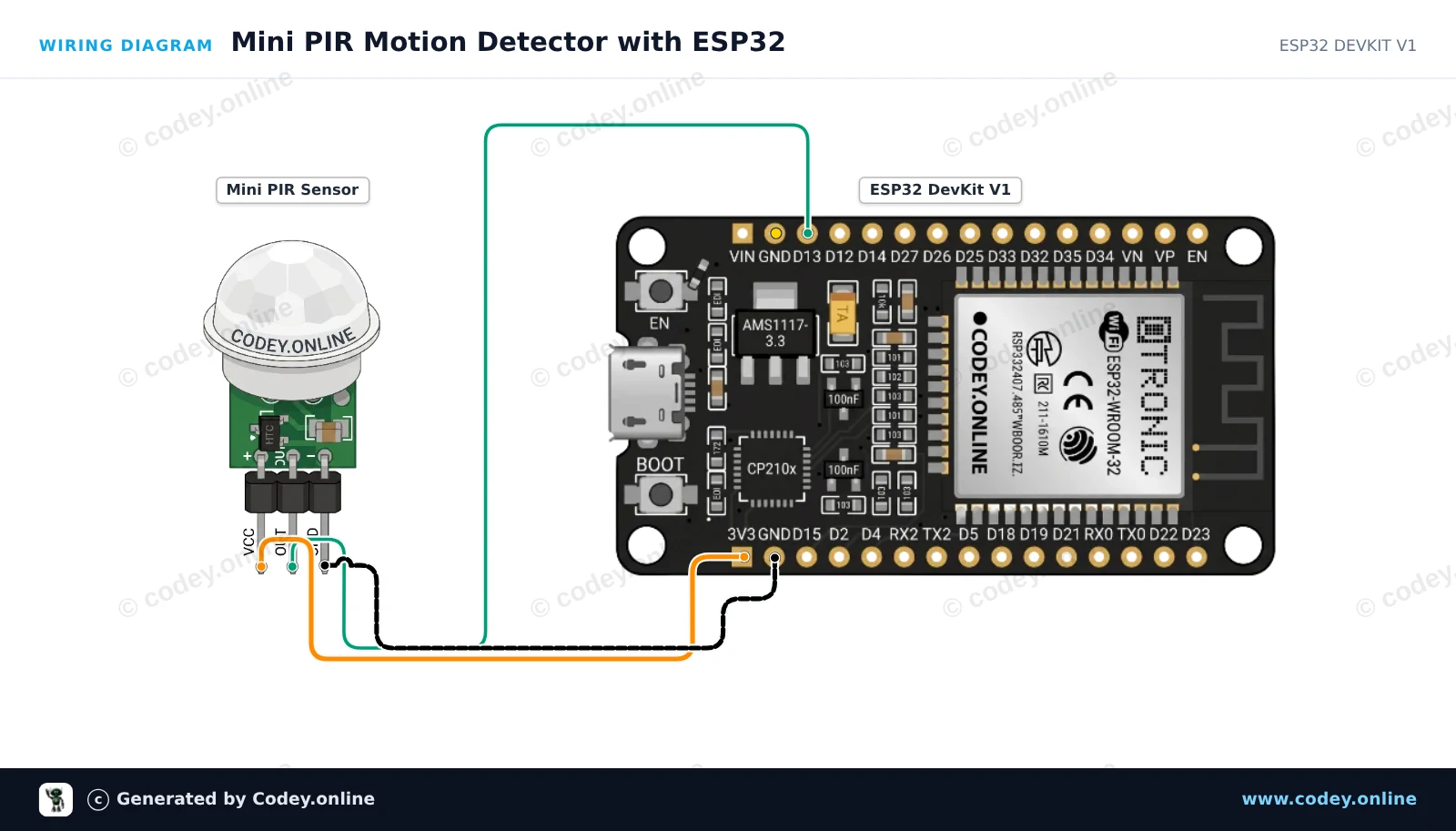

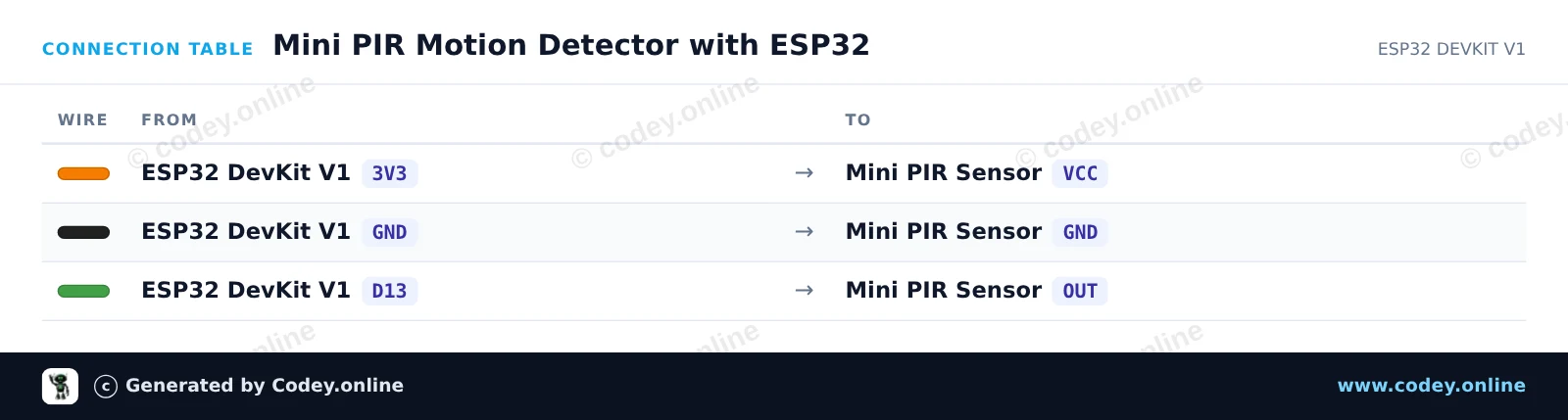

Este proyecto detecta movimiento humano usando un sensor de movimiento Mini PIR. Cuando se detecta movimiento, el ESP32 enciende el LED integrado (GPIO 2) y registra un mensaje en el Serial Monitor. Alimentar el sensor con 3.3V garantiza niveles de señal seguros para la entrada del ESP32.
/*
* ==================================================================
