SKU: OT2058-D113 Número de artículo: AB165 EAN: 8720618827999
Sensor de temperatura DS18B20 impermeable con una longitud total de 5 metros.
El diámetro del sensor es de 6mm y tiene una longitud de 50mm.
El grosor del cable es de 4mm y contiene 3 pequeños hilos de 1,1mm con los colores rojo, sin y negro.
Voltage: 3V tot 5.5V
Dimensiones
Longitud: 500cm
Ancho: 0,04cm
Altura: 0,04cm

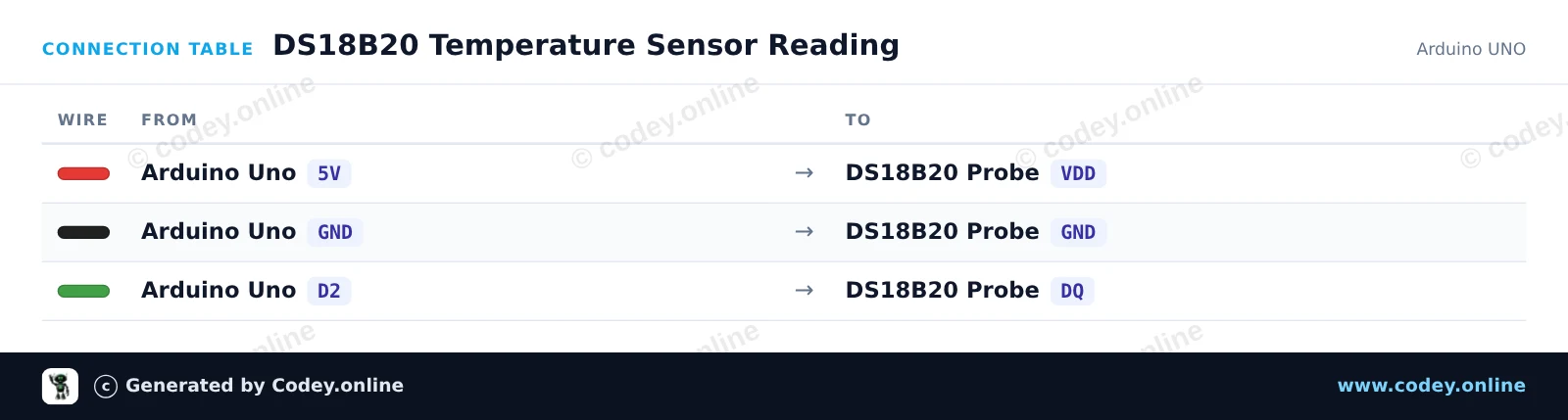

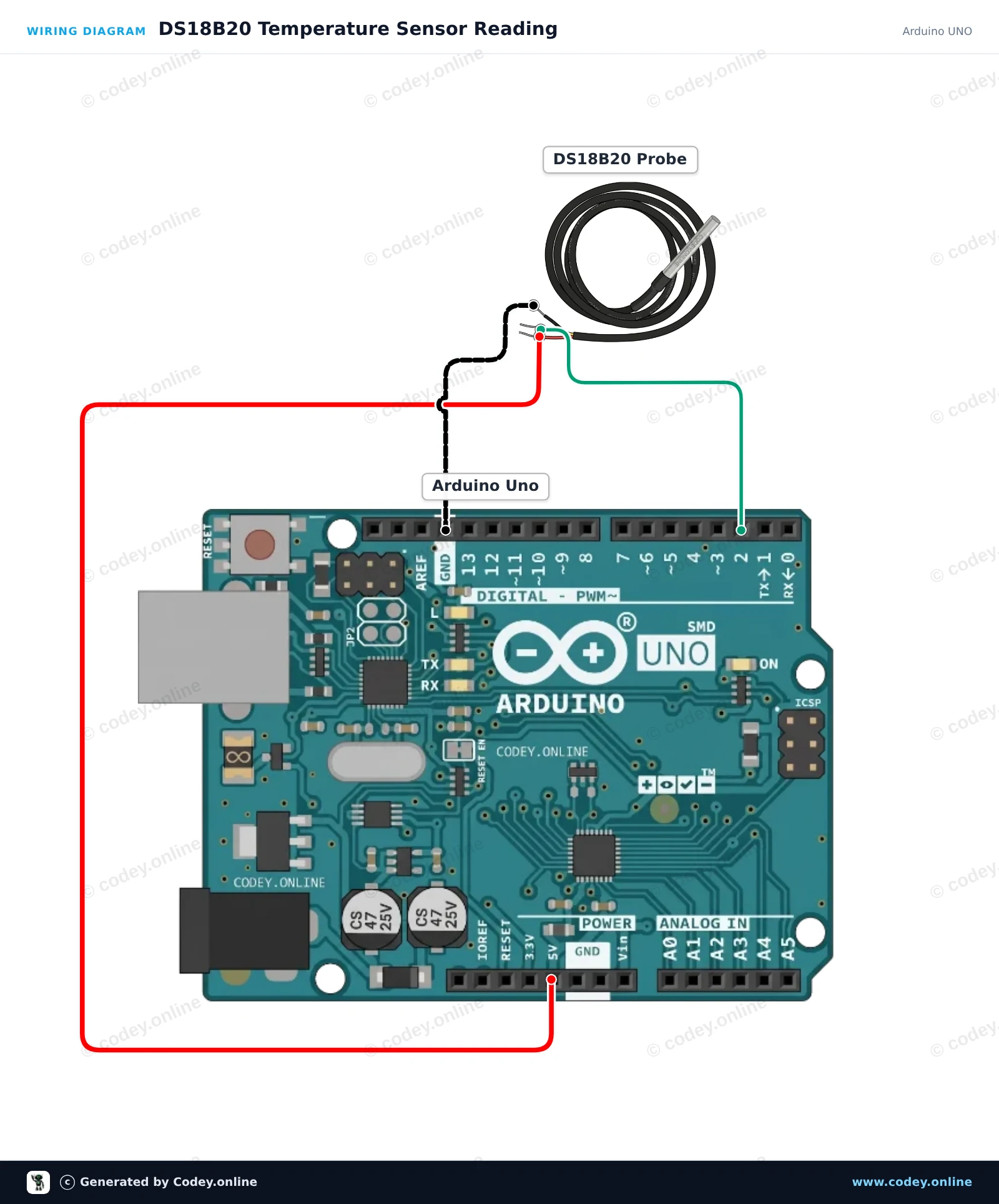

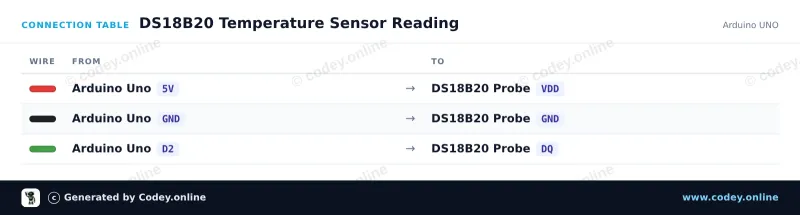

Así conectas el Sonda impermeable DS18B20 sensor de temperatura cable de 5m a un Arduino UNO o ESP32, con un sketch de ejemplo que puedes subir directamente.
Este ejemplo lee la temperatura ambiente o de un líquido usando la sonda digital impermeable DS18B20. Arduino consulta el sensor mediante el protocolo 1-Wire e imprime cada segundo los valores en Celsius y Fahrenheit en el Monitor Serie.
English
Nederlands
Frans
Deutsch
Italiano
Suomi
Polski
Dansk
Ελληνικά
Български
Čeština
Hrvatski
Aileen/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : DS18B20 Temperature Sensor Reading
* Board : Arduino UNO (arduino:avr:uno)
* Parts : DS18B20 waterdichte probe temperatuursensor 1 m cable
* Libraries : OneWire 2.3.8, DallasTemperature 4.0.6
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <OneWire.h>
#include <DallasTemperature.h>
const int ONE_WIRE_BUS = 2;
OneWire oneWire(ONE_WIRE_BUS);
DallasTemperature sensors(&oneWire);
void setup() {
Serial.begin(115200);
sensors.begin();
Serial.println(F("DS18B20 Temperature Sensor Initialized"));
}
void loop() {
sensors.requestTemperatures();
float tempC = sensors.getTempCByIndex(0);
if (tempC == DEVICE_DISCONNECTED_C) {
Serial.println(F("Error: Sensor not detected"));
} else {
float tempF = DallasTemperature::toFahrenheit(tempC);
Serial.print(F("Temperature: "));
Serial.print(tempC, 2);
Serial.print(F(" °C | "));
Serial.print(tempF, 2);
Serial.println(F(" °F"));
}
delay(1000);
}Bibliotecas necesarias: OneWire 2.3.8, DallasTemperature 4.0.6
Wiring diagram and example code generated by Codey.online — https://www.codey.online

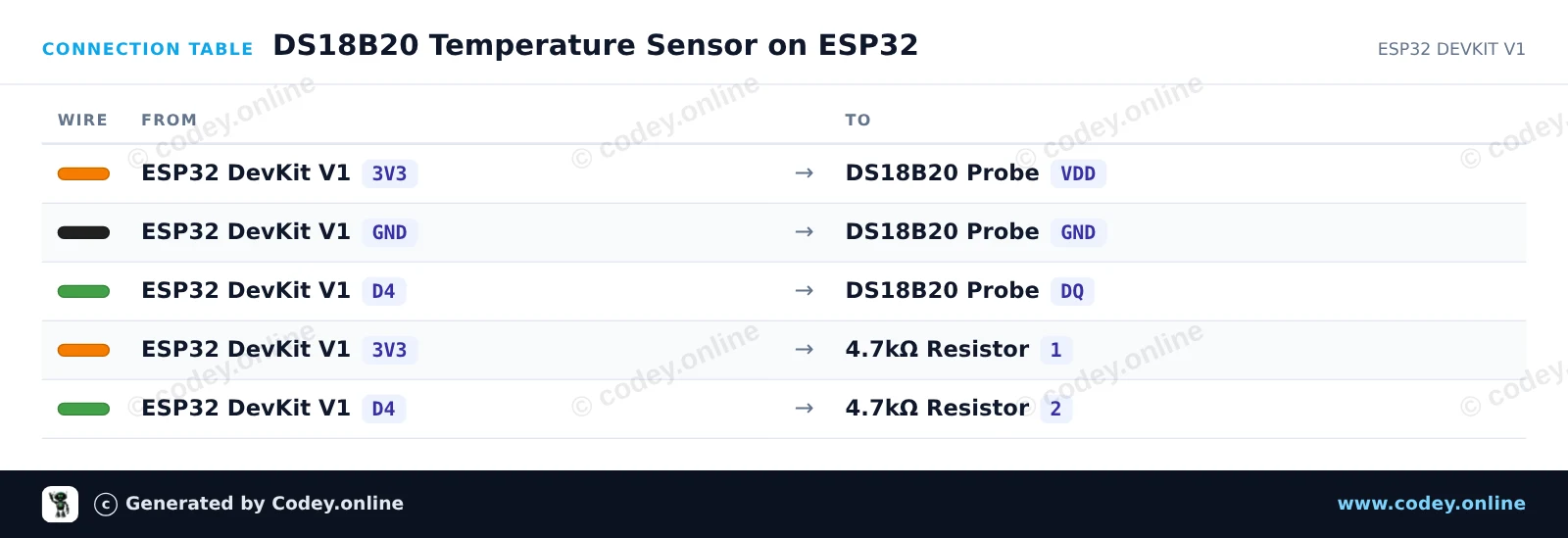

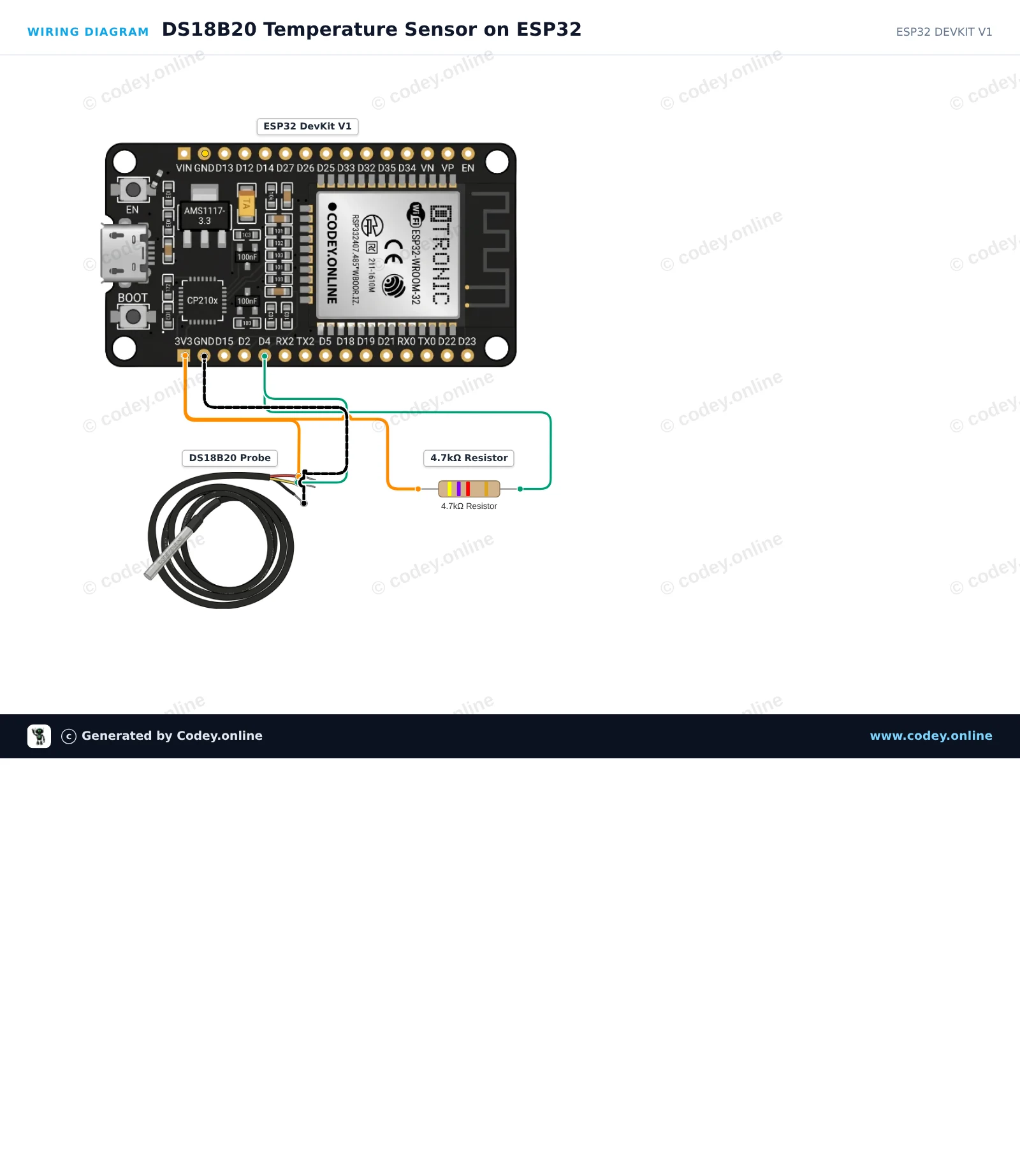

Este proyecto mide la temperatura ambiente o la temperatura de un líquido usando una sonda impermeable DS18B20 en un bus 1-Wire. Se coloca una resistencia pull-up de 4.7kΩ entre 3.3V y el pin de datos (DQ) para garantizar una comunicación fiable. Abre el Monitor Serie a 115200 baud para ver lecturas continuas de temperatura en tiempo real en Celsius y Fahrenheit.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : DS18B20 Temperature Sensor on ESP32
* Board : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
* Parts : DS18B20 waterdichte probe temperatuursensor 1 m cable
* Libraries : OneWire 2.3.8, DallasTemperature 4.0.6
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include <OneWire.h>
#include <DallasTemperature.h>
// DS18B20 data line is connected to GPIO 4
#define ONE_WIRE_BUS 4
OneWire oneWire(ONE_WIRE_BUS);
DallasTemperature sensors(&oneWire);
void setup() {
Serial.begin(115200);
sensors.begin();
Serial.println("DS18B20 Temperature Sensor Demo");
}
void loop() {
sensors.requestTemperatures();
float tempC = sensors.getTempCByIndex(0);
float tempF = sensors.getTempFByIndex(0);
if (tempC == DEVICE_DISCONNECTED_C) {
Serial.println("Error: Could not read temperature data");
} else {
Serial.print("Temperature: ");
Serial.print(tempC, 2);
Serial.print(" °C | ");
Serial.print(tempF, 2);
Serial.println(" °F");
}
delay(2000);
}Bibliotecas necesarias: OneWire 2.3.8, DallasTemperature 4.0.6
Wiring diagram and example code generated by Codey.online — https://www.codey.online
