SKU: OT3243 Número de artículo: AB098 EAN: 8720618231314

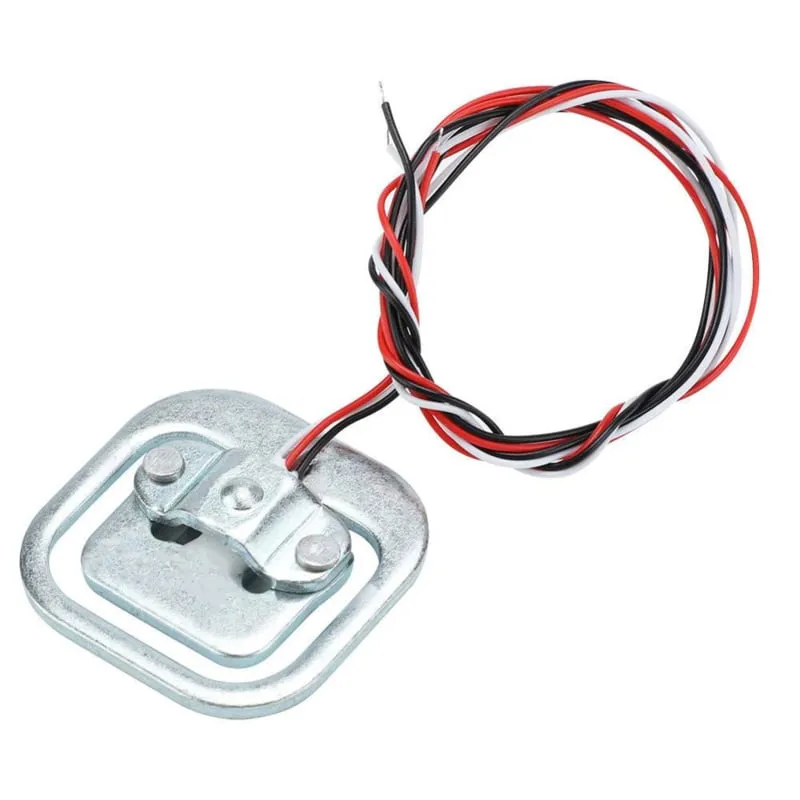

Esta celda de carga o sensor de peso puede soportar un peso de hasta 50KG. Si desea pesar un peso mayor, es posible combinar el sensor. Por ejemplo, usando 4 celdas de carga de 50KG se obtiene un peso máximo de 200KG.
Material: Aluminium
Capacidad: 50KG
Se puede usar con Arduino, ESP32 o ESP8266 en combinación con el HX711 Weegcelversterker.
Dimensiones
Longitud: 3,88cm
Ancho: 3,88cm
Altura: 1,21cm
Al reproducirlo, se carga el vídeo de YouTube.

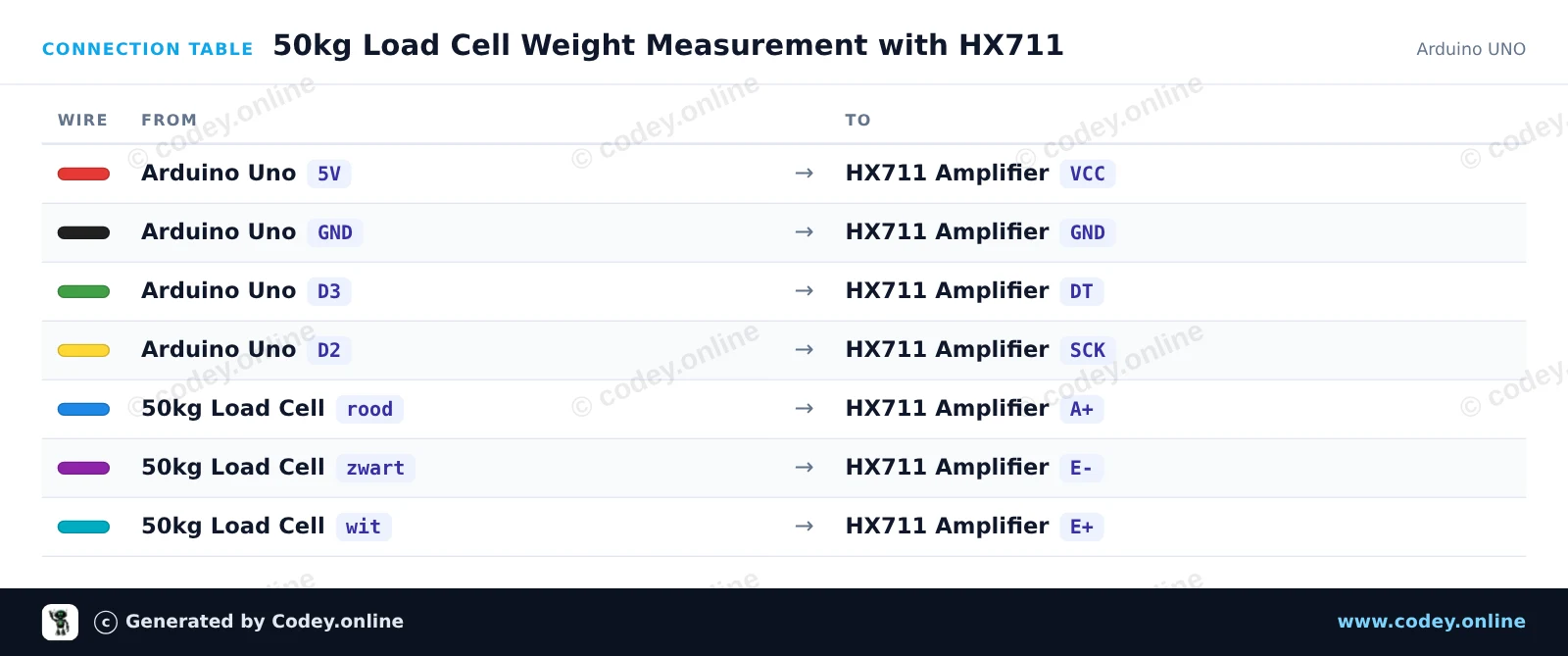

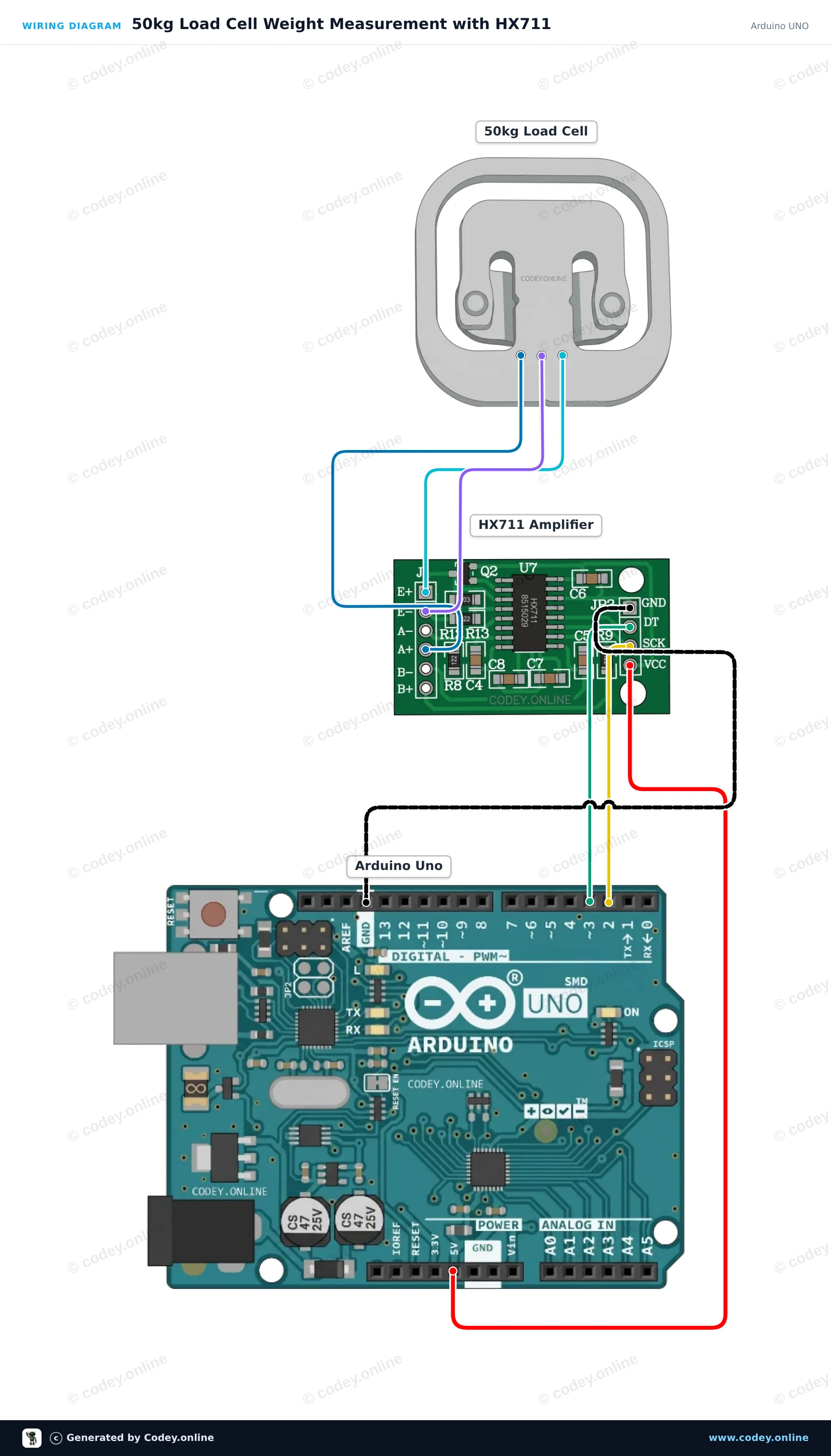

Así conectas el Sensor de peso hasta 50KG a un Arduino UNO o ESP32, con un sketch de ejemplo que puedes subir directamente.
Este proyecto mide el peso usando una celda de carga de 50kg conectada a un Arduino Uno a través de un módulo amplificador HX711. El sketch tara la balanza al arrancar y muestra repetidamente el peso medido en el Serial Monitor. Puedes calibrar la lectura ajustando el factor de calibración con un peso conocido.
English
Nederlands
Frans
Deutsch
Italiano
Suomi
Polski
Dansk
Ελληνικά
Български
Čeština
Hrvatski
Aileen/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : 50kg Load Cell Weight Measurement with HX711
* Board : Arduino UNO (arduino:avr:uno)
* Parts : 50kg Load Cell Weight Sensor
* Libraries : HX711 Arduino Library 0.7.5
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include "HX711.h"
const int LOADCELL_DOUT_PIN = 3;
const int LOADCELL_SCK_PIN = 2;
HX711 scale;
// Adjust this calibration factor after testing with a known reference weight
float calibration_factor = -7050.0;
void setup() {
Serial.begin(115200);
while (!Serial) {
; // Wait for serial port to connect
}
Serial.println(F("--- HX711 Load Cell Scale ---"));
Serial.println(F("Initializing scale, do not place weight on the sensor..."));
scale.begin(LOADCELL_DOUT_PIN, LOADCELL_SCK_PIN);
scale.set_scale(calibration_factor);
scale.tare(); // Reset the scale to 0
Serial.println(F("Tare complete. Ready for measurements."));
}
void loop() {
if (scale.is_ready()) {
float weight = scale.get_units(5);
Serial.print(F("Weight: "));
Serial.print(weight, 2);
Serial.println(F(" units"));
} else {
Serial.println(F("HX711 not ready."));
}
delay(500);
}Bibliotecas necesarias: HX711 Arduino Library 0.7.5
Wiring diagram and example code generated by Codey.online — https://www.codey.online

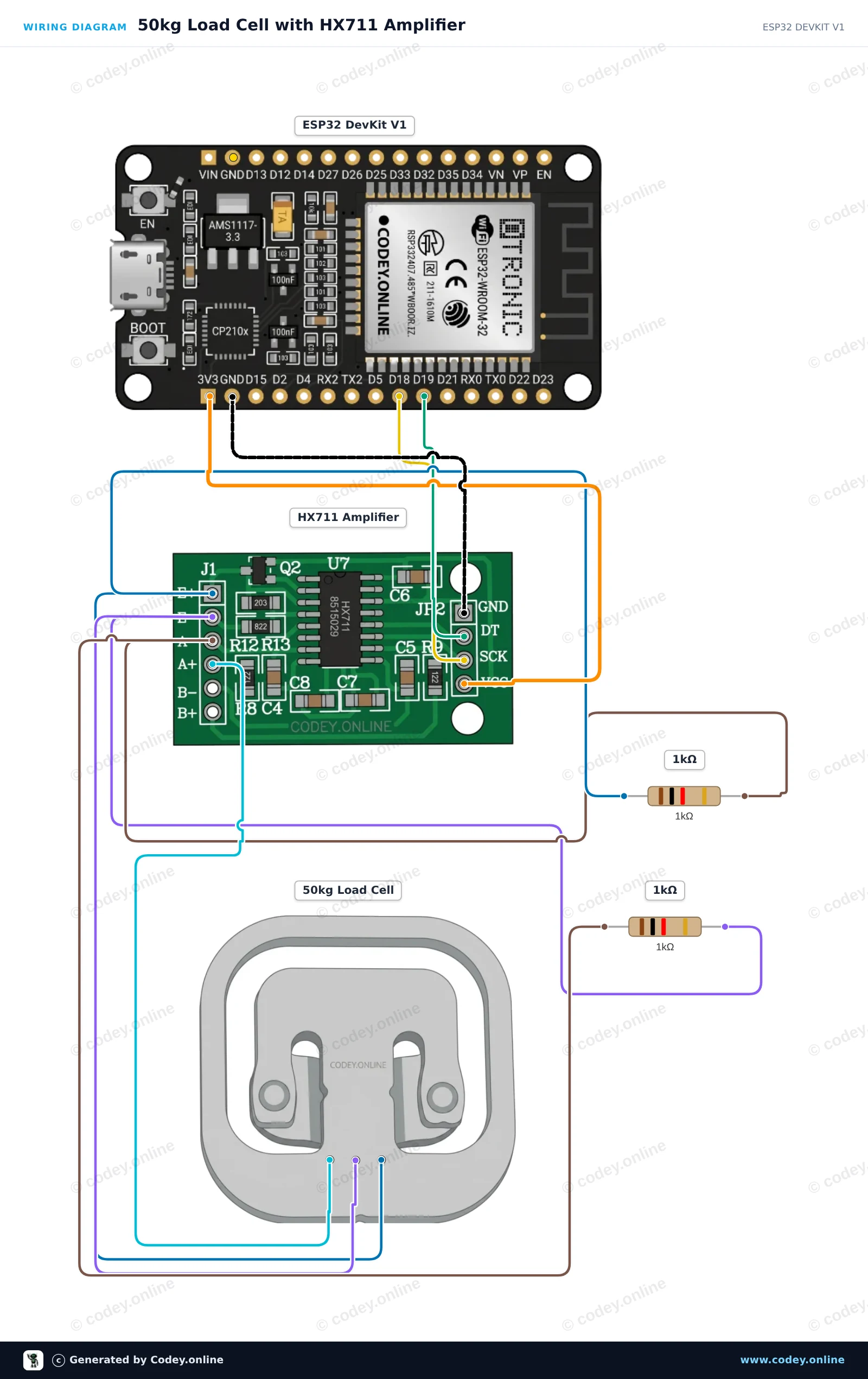

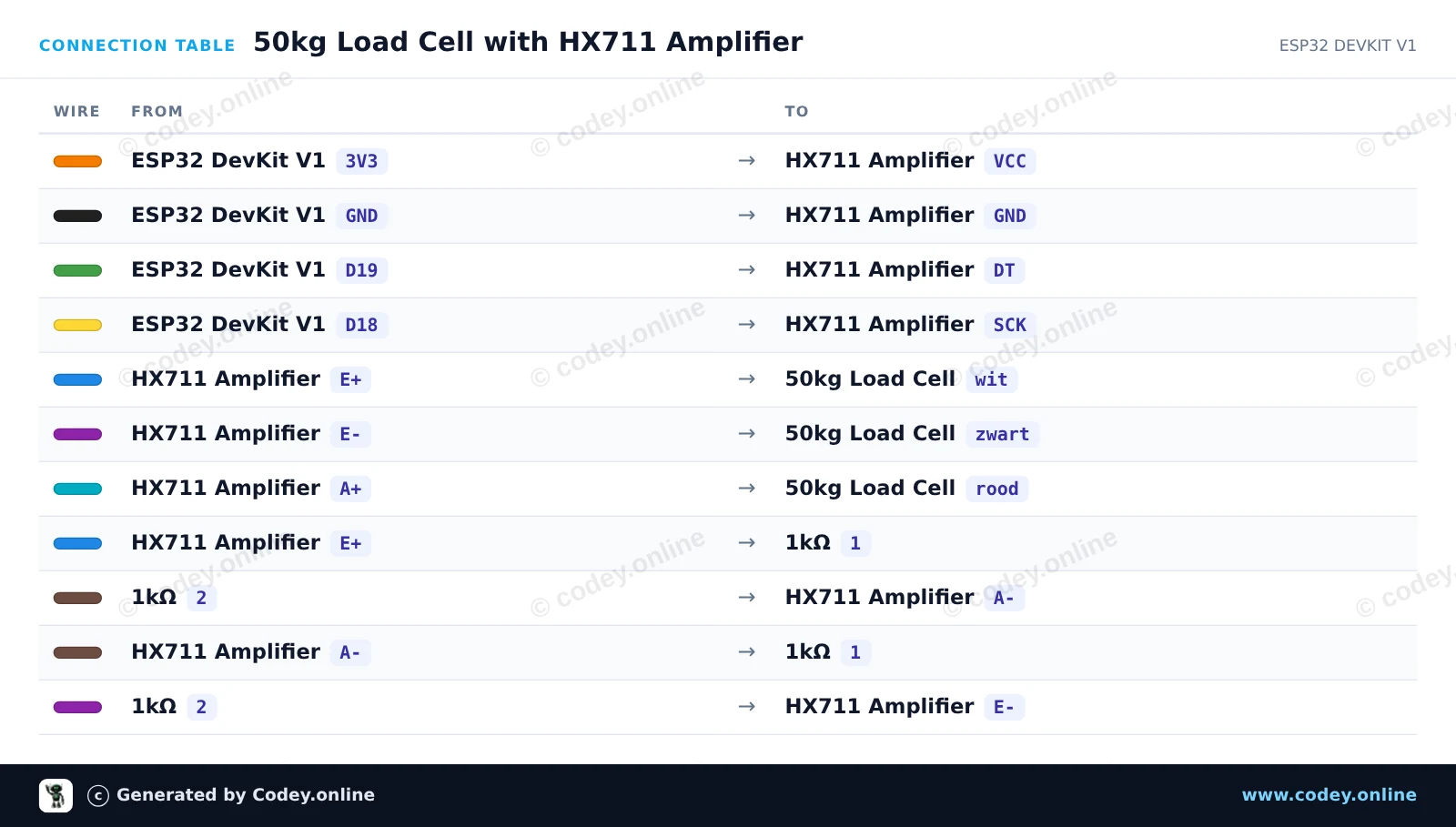

Este proyecto lee valores de peso de una sola half-bridge load cell de 50kg usando un amplificador HX711 y dos resistencias de 1kΩ para completar el puente de Wheatstone. Conecta el circuito, sube el sketch y abre el Serial Monitor a 115200 baud para ver las lecturas del sensor de peso en tiempo real.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : 50kg Load Cell with HX711 Amplifier
* Board : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
* Parts : 50kg Load Cell Weight Sensor
* Libraries : HX711 Arduino Library 0.7.5
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
#include "HX711.h"
// Pin definitions for HX711
const int DOUT_PIN = 19;
const int SCK_PIN = 18;
HX711 scale;
void setup() {
Serial.begin(115200);
Serial.println("50kg Load Cell Demo");
scale.begin(DOUT_PIN, SCK_PIN);
Serial.println("Taring scale... Please keep sensor unloaded.");
delay(1000);
scale.tare();
Serial.println("Tare complete. Ready for readings!");
}
void loop() {
if (scale.is_ready()) {
long rawValue = scale.get_value(5);
Serial.print("Raw Load Cell Value: ");
Serial.println(rawValue);
} else {
Serial.println("HX711 not found or not ready.");
}
delay(500);
}Bibliotecas necesarias: HX711 Arduino Library 0.7.5
Wiring diagram and example code generated by Codey.online — https://www.codey.online
