Esquema de conexión y ejemplo de código

Así conectas el Mini OLED display blanco 0.91 inch 128x32 I2C a un Arduino UNO o ESP32, con un sketch de ejemplo que puedes subir directamente.

Demostración de pantalla OLED I2C de 0,91 pulgadas

Este proyecto demuestra cómo inicializar y mostrar texto y un contador en vivo en una pantalla OLED I2C de 128x32 y 0,91 pulgadas. La pantalla se conecta directamente a los pines I2C del Arduino Uno (A4 y A5) y se actualiza de forma continua.

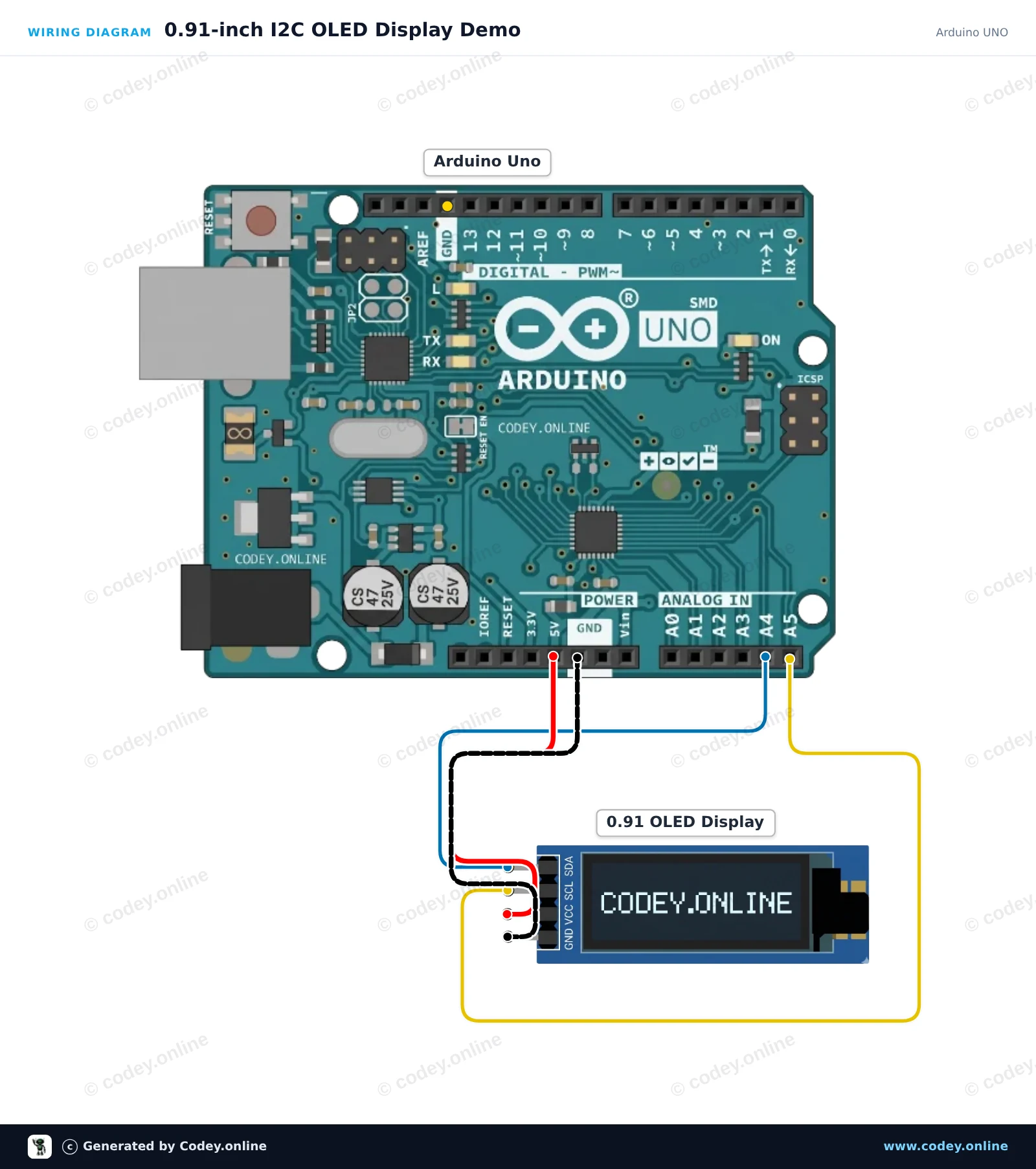

Esquema de conexión: Mini OLED display blanco 0.91 inch 128x32 I2C en un Arduino UNO
Esquema de conexión · Haz clic para ampliar

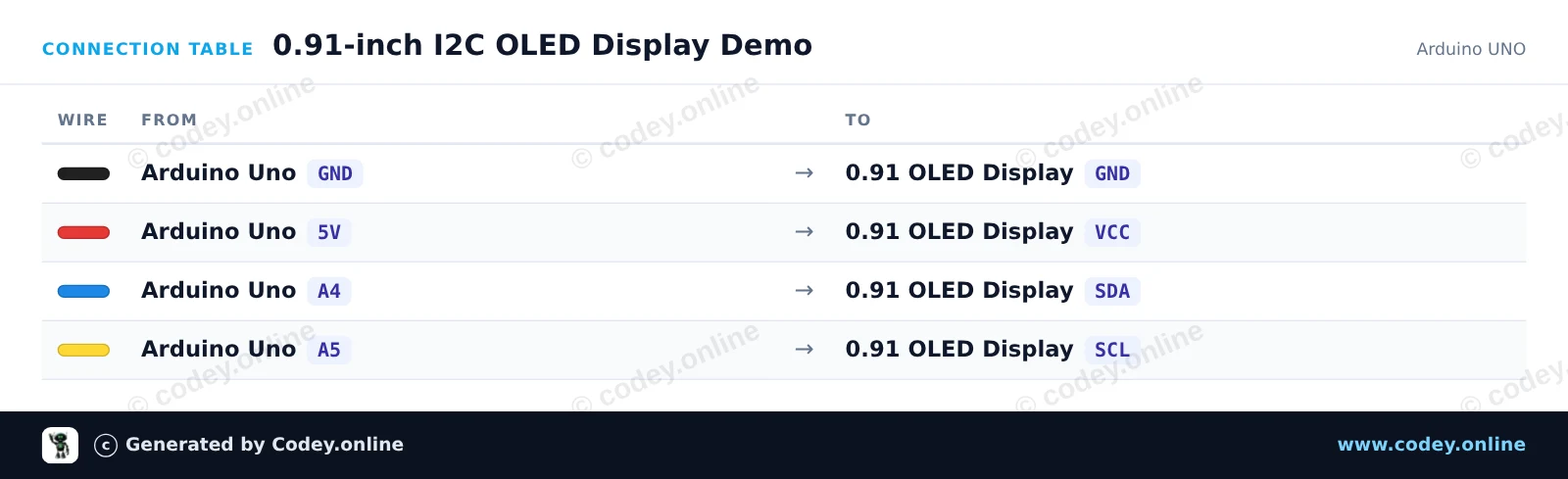

Tabla de conexión: Mini OLED display blanco 0.91 inch 128x32 I2C en un Arduino UNO
Tabla de conexión · Haz clic para ampliar
0_91_inch_I2C_OLED_Display_Demo.ino · compilado y probado
/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : 0.91-inch I2C OLED Display Demo
 *  Board     : Arduino UNO (arduino:avr:uno)
 *  Parts     : OLED Display 0.91 inch
 *  Libraries : U8g2 2.36.19
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

#include <Wire.h>
#include <U8g2lib.h>

U8G2_SSD1306_128X32_UNIVISION_F_HW_I2C u8g2(U8G2_R0, U8X8_PIN_NONE);

unsigned long counter = 0;

void setup() {
  u8g2.begin();
}

void loop() {
  u8g2.clearBuffer();

  u8g2.setFont(u8g2_font_6x10_tf);
  u8g2.drawStr(0, 10, "0.91\" OLED Demo");

  u8g2.setFont(u8g2_font_ncenB08_tr);
  u8g2.setCursor(0, 26);
  u8g2.print(F("Count: "));
  u8g2.print(counter);

  u8g2.sendBuffer();

  counter++;
  delay(500);
}

Bibliotecas necesarias: U8g2 2.36.19

Wiring diagram and example code generated by Codey.online — https://www.codey.online

Demostración de pantalla OLED de 0.91 pulgadas para ESP32

Este proyecto muestra texto y un contador en marcha en una pantalla OLED I2C de 128x32 de 0.91 pulgadas usando el ESP32. Conecta la pantalla directamente a los pines I2C predeterminados (GPIO 21 y 22) y aliméntala con 3.3V. Sube el sketch y observa cómo la pantalla se actualiza cada segundo.

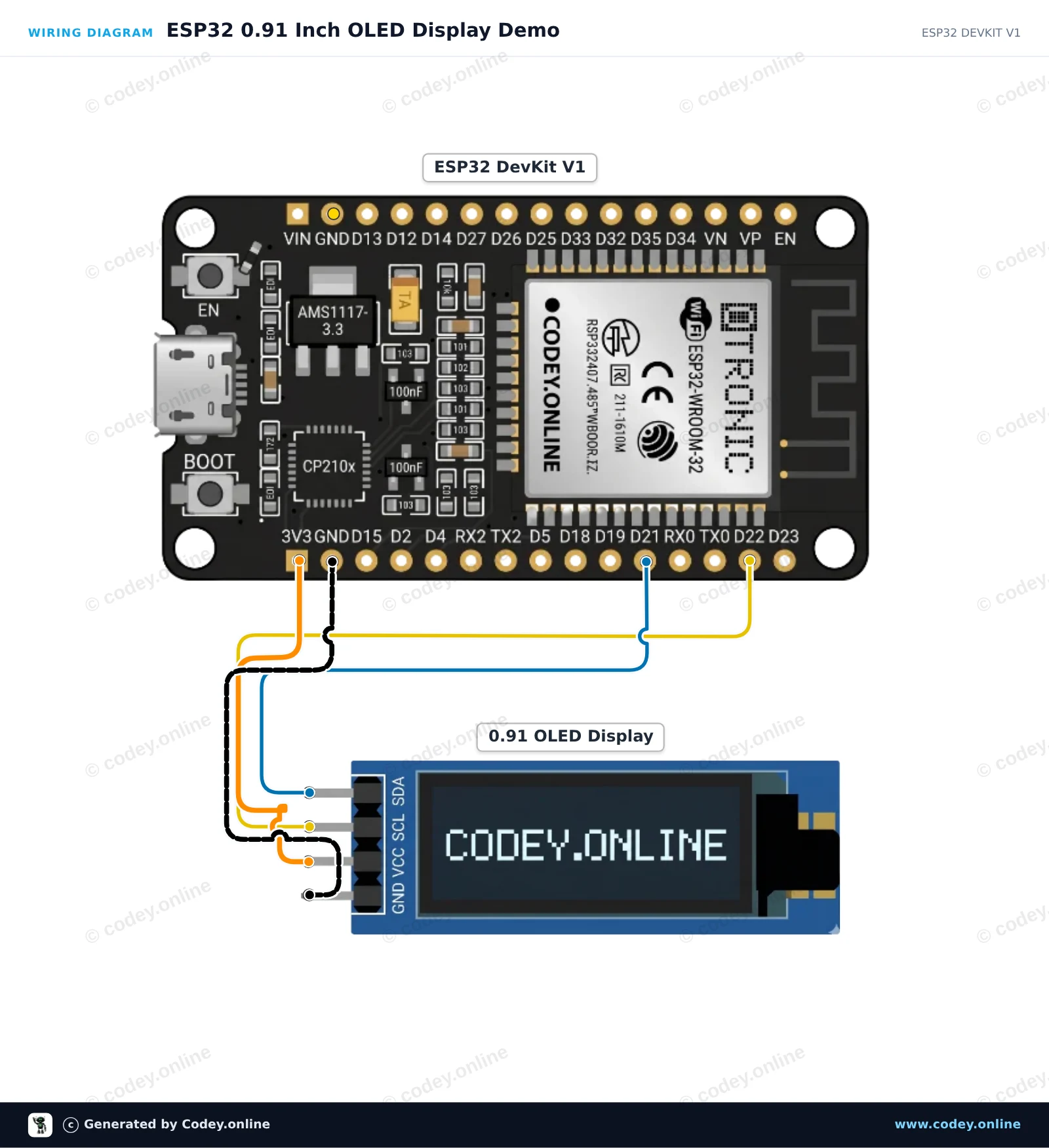

Esquema de conexión: Mini OLED display blanco 0.91 inch 128x32 I2C en un ESP32 DevKit V1
Esquema de conexión · Haz clic para ampliar

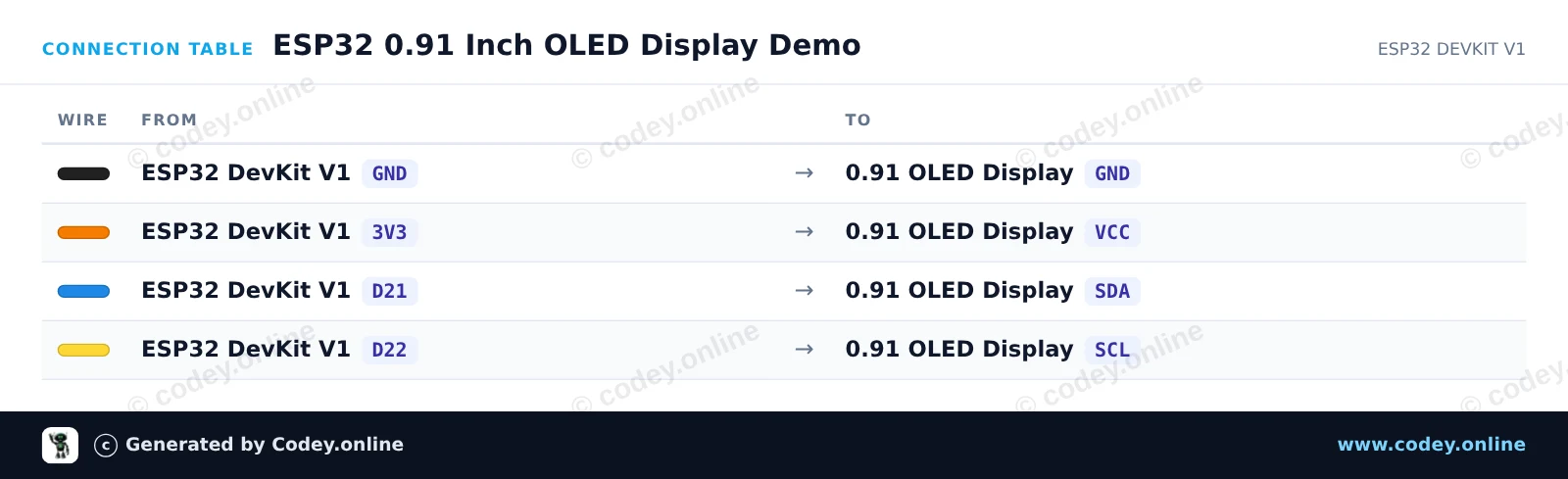

Tabla de conexión: Mini OLED display blanco 0.91 inch 128x32 I2C en un ESP32 DevKit V1
Tabla de conexión · Haz clic para ampliar
ESP32_0_91_Inch_OLED_Display_Demo.ino · compilado y probado
/*
 * ==================================================================
 *  Generated by Codey.online  —  https://www.codey.online
 * ==================================================================
 *  Project   : ESP32 0.91 Inch OLED Display Demo
 *  Board     : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
 *  Parts     : OLED Display 0.91 inch
 *  Libraries : Adafruit SSD1306 2.5.16, Adafruit GFX Library 1.12.6
 *
 *  Codey Online is an AI-powered browser IDE for Arduino and ESP32.
 *  Describe your project and Codey writes the code, draws the wiring
 *  diagram and uploads it to your board, straight from the browser.
 *  This code is free to use, modify and share, without warranty.
 * ==================================================================
 */

#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 32
#define OLED_RESET -1
#define SCREEN_ADDRESS 0x3C

Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);

int counter = 0;

void setup() {
  Serial.begin(115200);

  // Initialize I2C on ESP32 default pins: SDA (GPIO 21), SCL (GPIO 22)
  Wire.begin(21, 22);

  if (!display.begin(SSD1306_SWITCHCAPVCC, SCREEN_ADDRESS)) {
    Serial.println(F("SSD1306 allocation failed"));
    while (true);
  }

  display.clearDisplay();
  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println(F("ESP32 OLED Demo"));
  display.display();
  delay(2000);
}

void loop() {
  display.clearDisplay();

  display.setTextSize(1);
  display.setTextColor(SSD1306_WHITE);
  display.setCursor(0, 0);
  display.println(F("Hello from ESP32!"));

  display.setTextSize(2);
  display.setCursor(0, 14);
  display.print(F("Count: "));
  display.print(counter);

  display.display();

  counter++;
  delay(1000);
}

Bibliotecas necesarias: Adafruit SSD1306 2.5.16, Adafruit GFX Library 1.12.6

Wiring diagram and example code generated by Codey.online — https://www.codey.online
