Así conectas el Módulo relé 12v a un Arduino UNO o ESP32, con un sketch de ejemplo que puedes subir directamente.

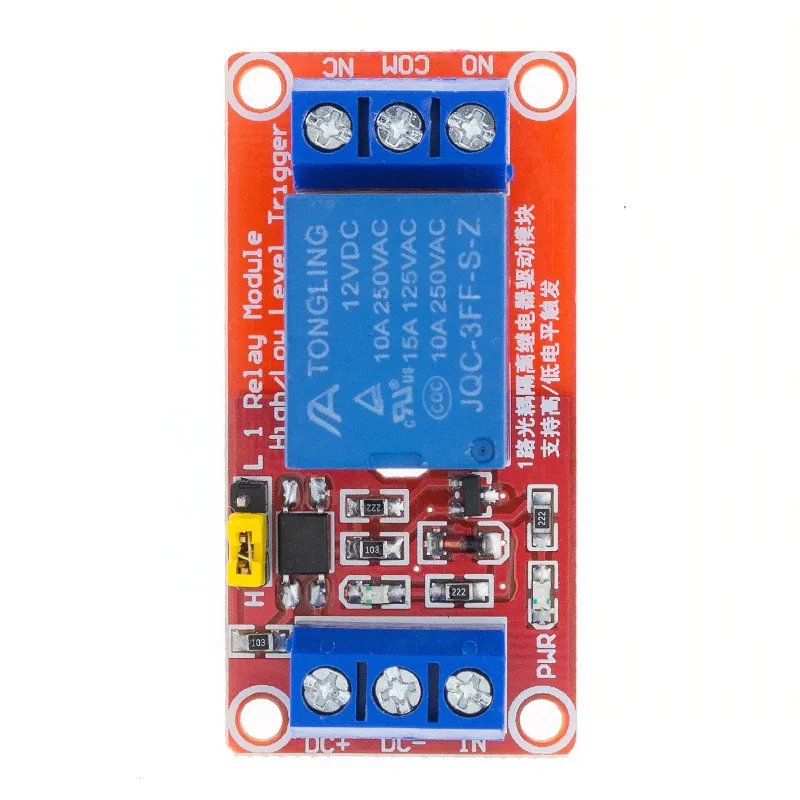

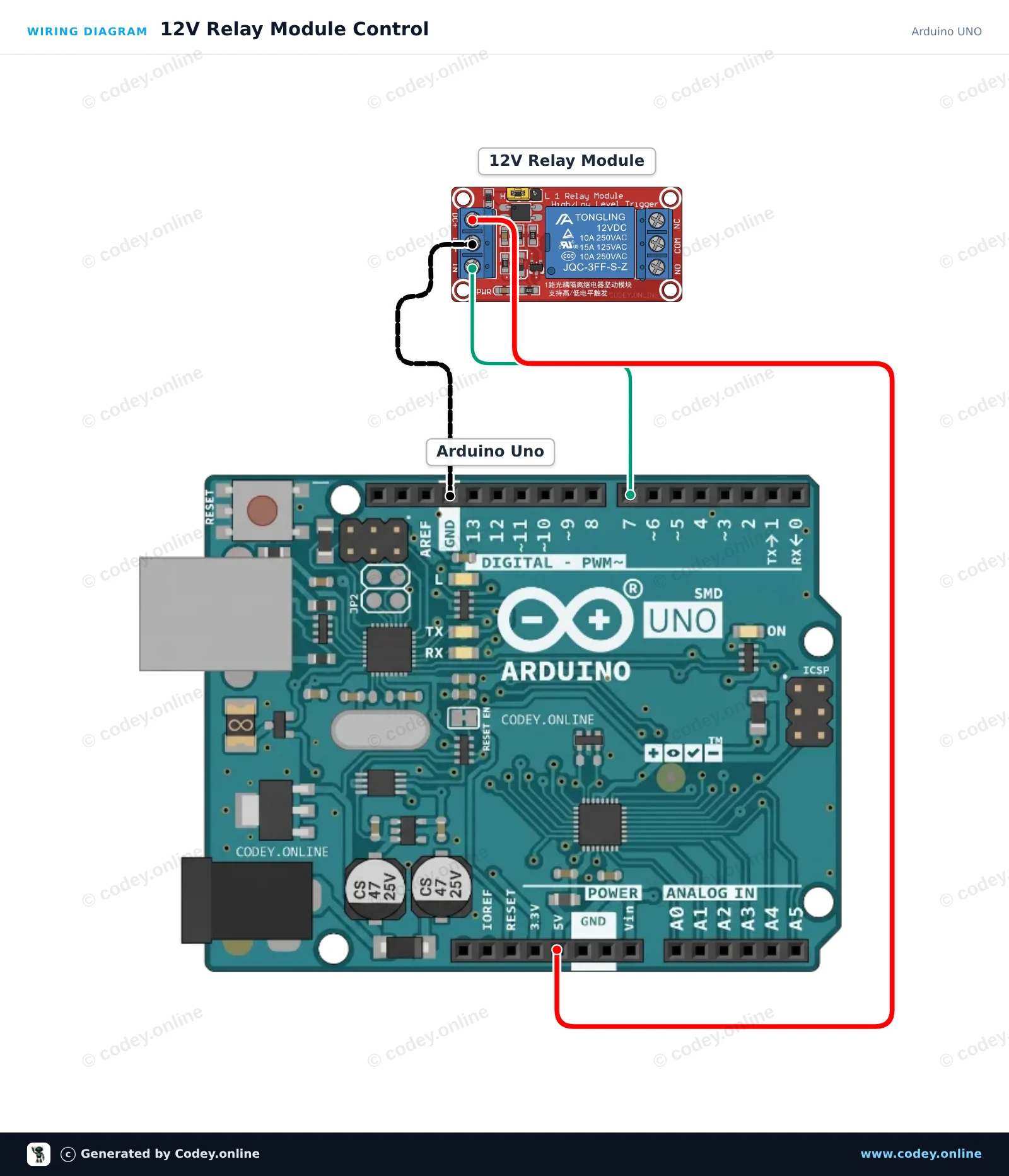

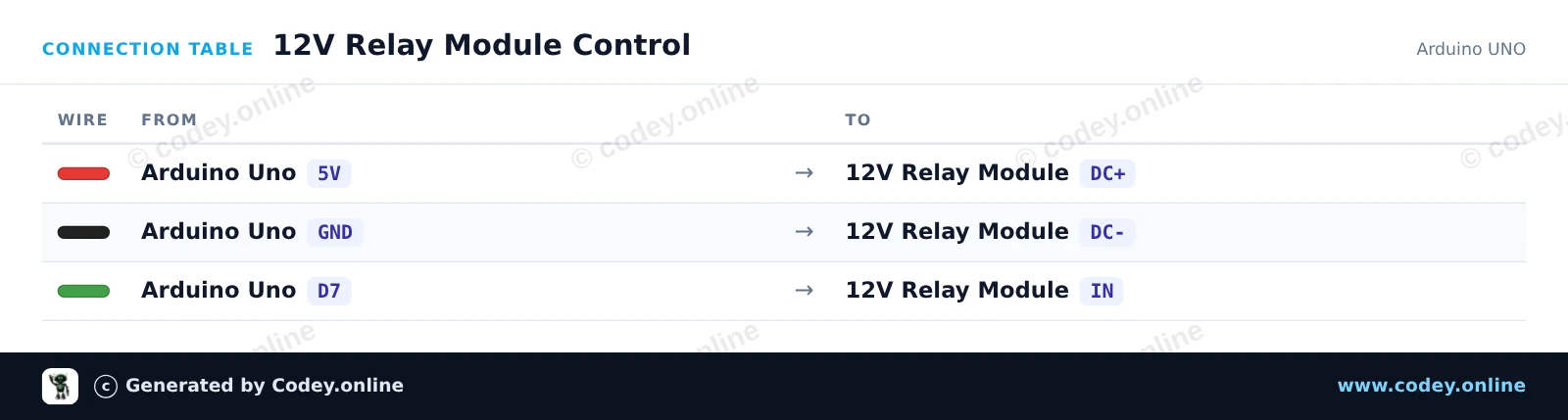

Este proyecto demuestra cómo controlar un módulo de relé de 12V con un Arduino Uno. El sketch enciende y apaga periódicamente el relé cada 2 segundos, mostrando el estado actual en el Serial Monitor. Un indicador LED integrado en el módulo se encenderá cuando el relé esté energizado.
English
Nederlands
Frans
Deutsch
Italiano
Suomi
Polski
Dansk
Ελληνικά
Български
Čeština
Hrvatski
Svenska
Aileen/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : 12V Relay Module Control
* Board : Arduino UNO (arduino:avr:uno)
* Parts : Relais Module 12v AC250V 10A Relais 12v 1 relais LED indicator
* Libraries : none (built-in)
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
// Pin configuration
const int RELAY_PIN = 7;
void setup() {
// Initialize serial communication
Serial.begin(115200);
while (!Serial) {
; // Wait for serial port to connect
}
// Configure relay control pin
pinMode(RELAY_PIN, OUTPUT);
digitalWrite(RELAY_PIN, HIGH); // Default off (active-low module)
Serial.println(F("12V Relay Module Demo Initialized"));
}
void loop() {
// Activate relay (Low-level trigger)
Serial.println(F("Relay: ON"));
digitalWrite(RELAY_PIN, LOW);
delay(2000);
// Deactivate relay
Serial.println(F("Relay: OFF"));
digitalWrite(RELAY_PIN, HIGH);
delay(2000);
}Wiring diagram and example code generated by Codey.online — https://www.codey.online

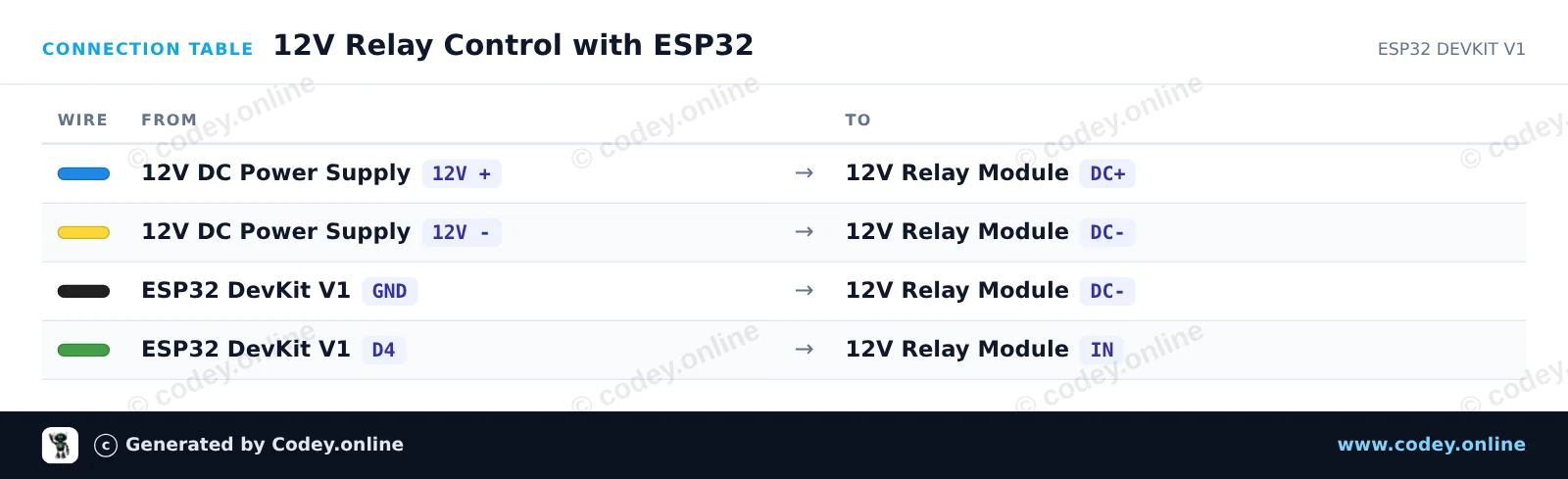

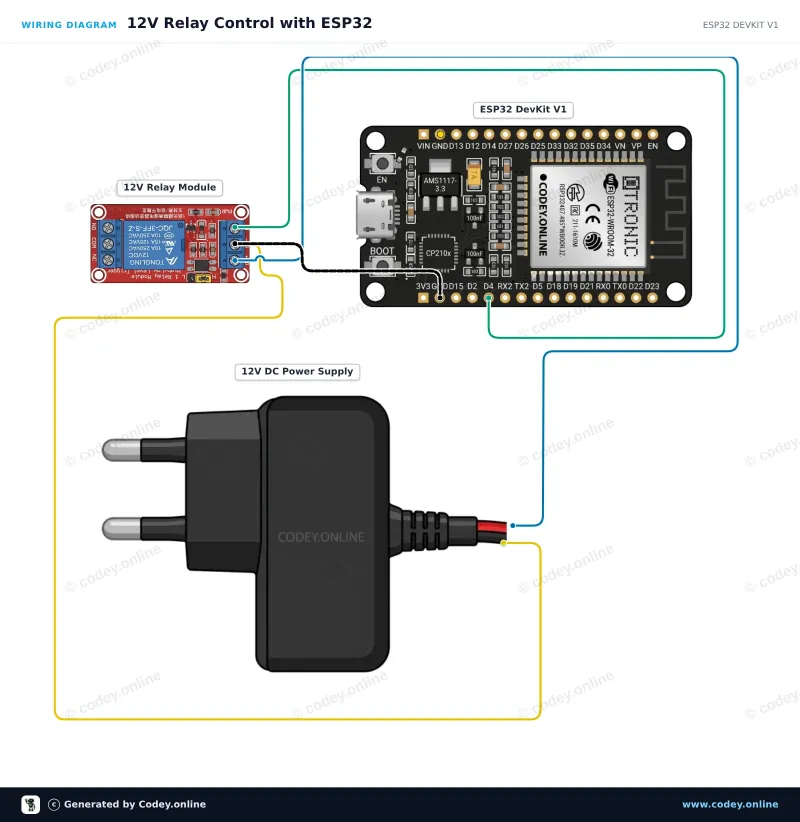

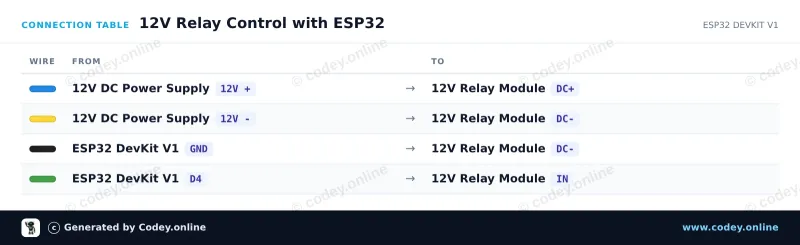

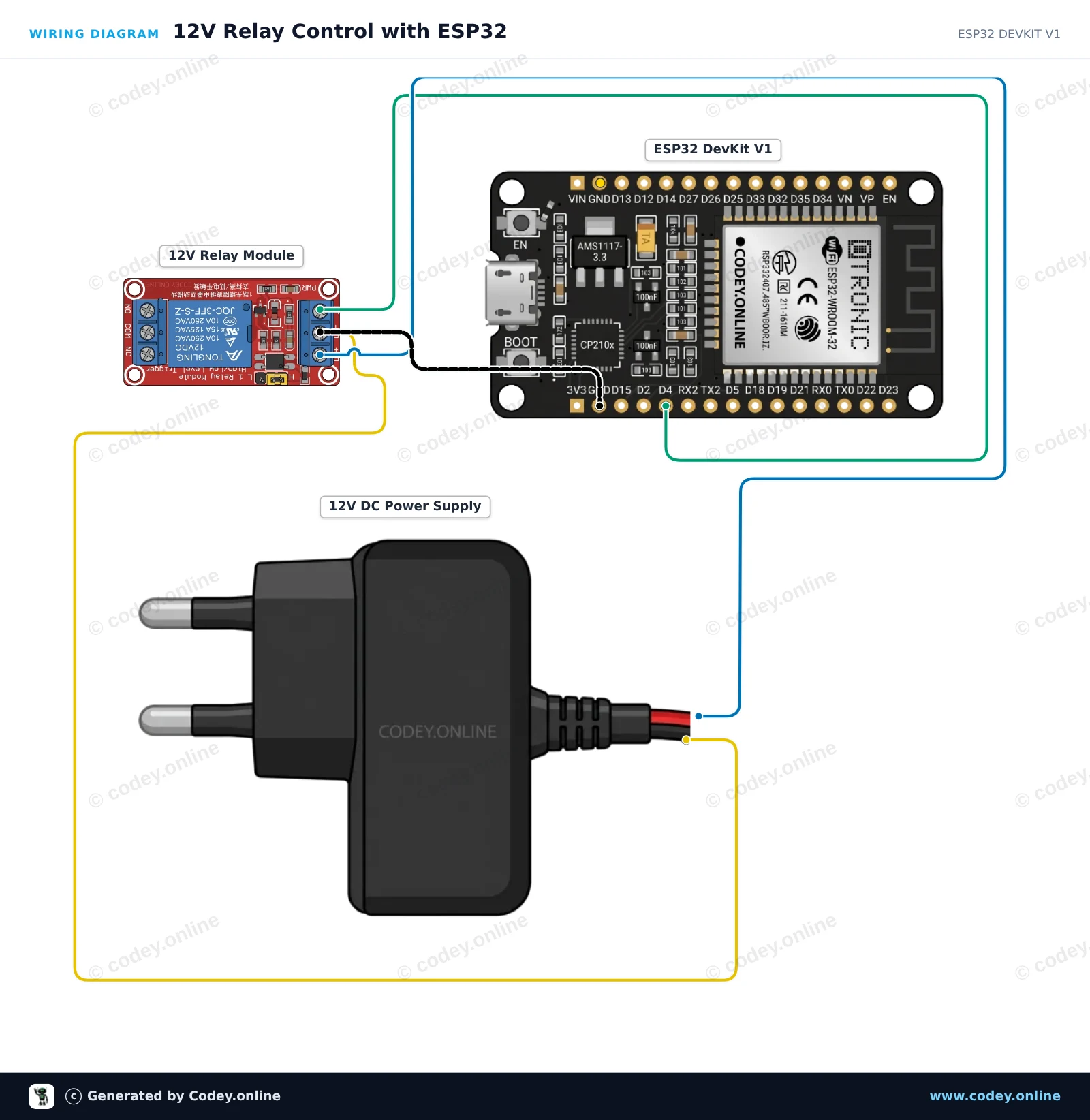

Este proyecto muestra cómo controlar un módulo de relé de un solo canal de 12V usando un ESP32. La bobina del relé se alimenta con una fuente de alimentación externa de 12V DC con masa compartida con el ESP32, y GPIO 4 conmuta el relé on y off cada dos segundos.
/*
* ==================================================================
* Generated by Codey.online — https://www.codey.online
* ==================================================================
* Project : 12V Relay Control with ESP32
* Board : ESP32 DEVKIT V1 (esp32:esp32:esp32doit-devkit-v1)
* Parts : Relais Module 12v AC250V 10A Relais 12v 1 relais LED indicator
* Libraries : none (built-in)
*
* Codey Online is an AI-powered browser IDE for Arduino and ESP32.
* Describe your project and Codey writes the code, draws the wiring
* diagram and uploads it to your board, straight from the browser.
* This code is free to use, modify and share, without warranty.
* ==================================================================
*/
// Pin connected to relay control input
const int RELAY_PIN = 4;
void setup() {
Serial.begin(115200);
// Configure relay pin as output
pinMode(RELAY_PIN, OUTPUT);
digitalWrite(RELAY_PIN, LOW);
Serial.println("ESP32 12V Relay Demo Started");
}
void loop() {
// Turn relay ON
Serial.println("Relay ON");
digitalWrite(RELAY_PIN, HIGH);
delay(2000);
// Turn relay OFF
Serial.println("Relay OFF");
digitalWrite(RELAY_PIN, LOW);
delay(2000);
}Wiring diagram and example code generated by Codey.online — https://www.codey.online
